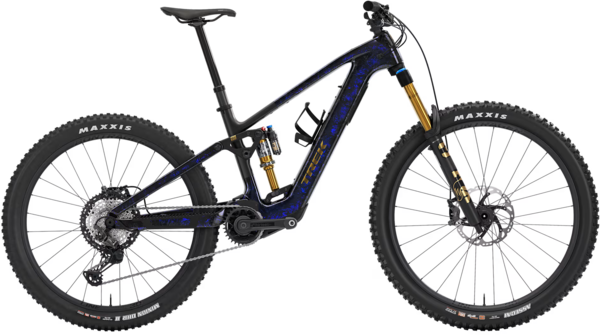

Trek Fuel+ MX 9.8 XT Gen 2

Trek Fuel+ MX 9.8 XT Gen 2
$10,199.99
Color: Gloss Navy Smoke/Matte Trek Black
Size: Large
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable
Order now and pick up in-store for free

Details

Fuel+ MX 9.8 XT is a chaos-craving carbon e-MTB for chasing side hits, lap after lap. It starts off with an OCLV Mountain Carbon frame with TQ's HPR60 motor, speced with a Fox Factory suspension package (150mm rear, 160mm front), and MX wheels for getting wild on the trail. A mechanical Shimano XT 12-speed drivetrain gives you clean, reliable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.

*All measurements provided in cm unless otherwise noted.

Sizes:
Frame size letterSmallMediumLargeX-LargeXX-Large
Wheel size 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5"
A — Seat tube 37 40 42 45.5 47.5
B — Seat tube angle 72.3° 72.3° 72.3° 72.3° 72.3°
Effective seat tube angle 77.7° 77.5° 77.0° 76.6° 76.1°
C — Head tube length 11 11 12.5 14 15.5
D — Head angle 64.2° 64.2° 64.2° 64.2° 64.2°
E — Effective top tube 56 59 61.9 65.2 68.2
F — Bottom bracket height 34.3 34.3 34.3 34.3 34.3
G — Bottom bracket drop 3.1 3.1 3.1 3.1 3.1
H — Chainstay length 44 44 44 44.4 44.9
I — Offset 4.4 4.4 4.4 4.4 4.4
J — Trail 13.2 13.2 13.2 13.2 13.2
K — Wheelbase 120.4 123.4 126.6 130.1 133.2
L — Standover 75.8 75.2 75.5 75.9 76.9
M — Frame reach 42.6 45.6 48.2 50.7 52.7
N — Frame stack 62.7 62.7 64.1 65.4 66.8
Sizes:
SizeSmallMediumLargeX-LargeXX-Large
Rider Height 155 - 165 cm / 5'1" - 5'5" 165 - 177 cm / 5'5" - 5'10" 177 - 188 cm / 5'10" - 6'2" 188 - 195 cm / 6'2" - 6'5" 195 - 203 cm / 6'5" - 6'8"
Inseam 74 - 78 cm / 29" - 31" 79 - 83 cm / 31" - 33" 84 - 89 cm / 33" - 35" 89 - 91 cm / 35" - 36" 91 - 97 cm / 36" - 38"

Specs

Frame OCLV Mountain Carbon, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 160mm travel
Rear Shock Fox Factory Float X, 205mm x 60mm
Wheels Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 27.5''
Tires Front: Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Rear: Maxxis Minion DHR II, tubeless ready, 3C, Double Down, MAXXGRIP, 27.5x2.5''
Crankset E*thirteen E*spec Plus, 160mm length
Chainrings E*Thirteen Helix Core Steel 32t steel, 55mm chainline
Shifters Shimano XT M8100, 12 speed
Rear Derailleur Shimano XT M8100, long cage
Cassette/Freewheel Shimano XT M8200, 10-51, 12 speed
Chain Shimano Ultegra/XT M8100, 12 speed
Brakes Shimano XT M8200 4-piston hydraulic disc
Rotors Shimano RT86, 6-bolt, 203mm
Handlebars Race Face ERA, carbon, 35mm, 40mm rise, 800mm width
Tape/Grips Trek Line Elite, lock-on
Stem Bontrager Elite, 35mm, 0 degree, 45mm length
Seatpost Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length Size: M Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Size: XL, L, XXL Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 515mm length
Saddle Verse Short Comp, steel rails, 145mm width
Pedals Sold Separately
Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Battery TQ 580Wh
Controller/Display TQ color LED display with Bluetooth & ANT+ connectivity
Charger TQ 4A charger

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gloss Navy Smoke/Matte Trek Black / Large / 29-inch front / 27.5-inch rear 197216280347 5340940
